Characteristics
- Easy cutting soft bond for hard concrete additives and high steel content
- Easy spot drilling by roof drilling segments
- Long life cycle and full utilisation of the entire segment by special pressing und sintering process
- Re-coating is possible because of soldered segments (see diamond drilling segments)
Application and use
- Wet drilling for hard concrete
| Diameter (mm) | Length (mm) | Thickness (mm) | Height (mm) | Number segments |
|---|---|---|---|---|
| 38 | 20 | 3,6 | 10 | 4 |
| 40 | 20 | 3,6 | 10 | 4 |
| 42 | 20 | 3,6 | 10 | 4 |
| 47 | 20 | 3,6 | 10 | 5 |
| 52 | 20 | 3,6 | 10 | 6 |
| 57 | 20 | 3,6 | 10 | 6 |
| 62 | 20 | 3,6 | 10 | 7 |
| 72 | 20 | 3,6 | 10 | 8 |

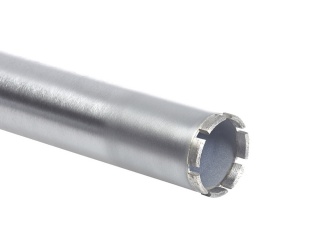

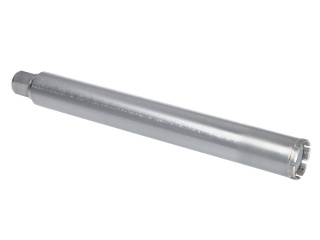

Diamond drill bit segments hard concrete
Diameter range: 38 - 500 mm
Application area: hard concrete
from € 3,34 *
free consulting
+49 8824 92 340
