Characteristics
- Easy cutting soft bond for hard concrete additives and high steel content
- Easy spot drilling by roof drilling segments
- Long life cycle and full utilisation of the entire segment by special pressing und sintering process
- Re-coating is possible because of soldered segments (see diamond drilling segments)
Application and use
- Wet drilling for hard concrete
| Diameter (mm) | Length (mm) | Thickness (mm) | Height (mm) | Number segments |
|---|---|---|---|---|
| 82 | 25,4 | 3,6 | 10 | 7 |
| 92 | 25,4 | 3,6 | 10 | 8 |
| 102 | 25,4 | 3,6 | 10 | 8 |
| 107 | 25,4 | 3,6 | 10 | 9 |
| 112 | 25,4 | 3,6 | 10 | 9 |
| 122 | 25,4 | 4 | 10 | 10 |
| 132 | 25,4 | 4 | 10 | 11 |
| 142 | 25,4 | 4 | 10 | 11 |
| 152 | 25,4 | 4 | 10 | 12 |
| 158 | 25,4 | 4 | 10 | 12 |
| 162 | 25,4 | 4 | 10 | 12 |
| 172 | 25,4 | 4 | 10 | 13 |
| 182 | 25,4 | 4 | 10 | 13 |

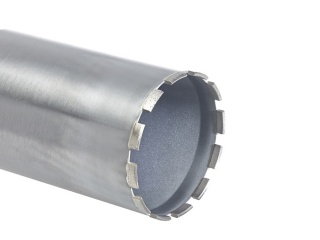

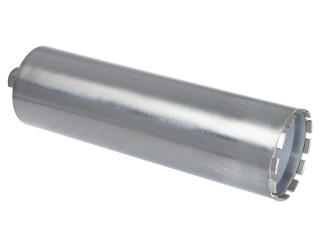

Diamond drill bit segments hard concrete
Diameter range: 38 - 500 mm
Application area: hard concrete
from € 3,34 *
free consulting
+49 8824 92 340
