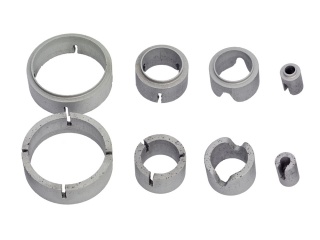

Characteristics
- For all machine capacities
- Very suitable for drilling in concrete, reinforced concrete and masonry
- The soldered zone is matched accurately to the tube size, this way the ring can be precisely centered and soldered on the tube without any additional tools
Application and use
- Wet drill for concrete, reinforced concrete and masonry
- Recoating of core drills/ diamond drill bits
| Diameter (mm) | Ring thickness (mm) | Ring height (mm) | Brazing range (mm) |
|---|---|---|---|
| 8 | 2,0 | 7,0 | 5,0 |
| 10 | 2,0 | 7,0 | 5,0 |
| 12 | 2,5 | 7,0 | 5,0 |
| 14 |
2,5 |
7,0 | 5,0 |
| 15 | 2,5 | 7,0 | 5,0 |
| 16 | 2,5 | 7,0 | 5,0 |
| 18 | 2,5 | 7,0 | 5,0 |
| 20 | 2,5 | 7,0 | 5,0 |
| 22 | 2,5 | 7,0 | 5,0 |
| 24 | 2,5 | 7,0 | 5,0 |
| 25 | 2,5 | 7,0 | 5,0 |
| 26 | 2,5 | 7,0 | 5,0 |
| 27 | 2,5 | 7,0 | 5,0 |
| 28 | 2,5 | 7,0 | 5,0 |
| 30 | 2,5 | 7,0 | 5,0 |
| 32 | 2,5 | 7,0 | 5,0 |
| 35 | 2,5 | 7,0 | 5,0 |
| 38 | 2,5 | 7,0 | 5,0 |
| 40 | 2,5 | 7,0 | 5,0 |
| 42 | 3,6 | 7,0 | 5,0 |
| 45 | 2,5 | 7,0 | 5,0 |
| 50 | 2,5 | 7,0 | 5,0 |
| 52 | 3,6 | 7,0 | 5,0 |
